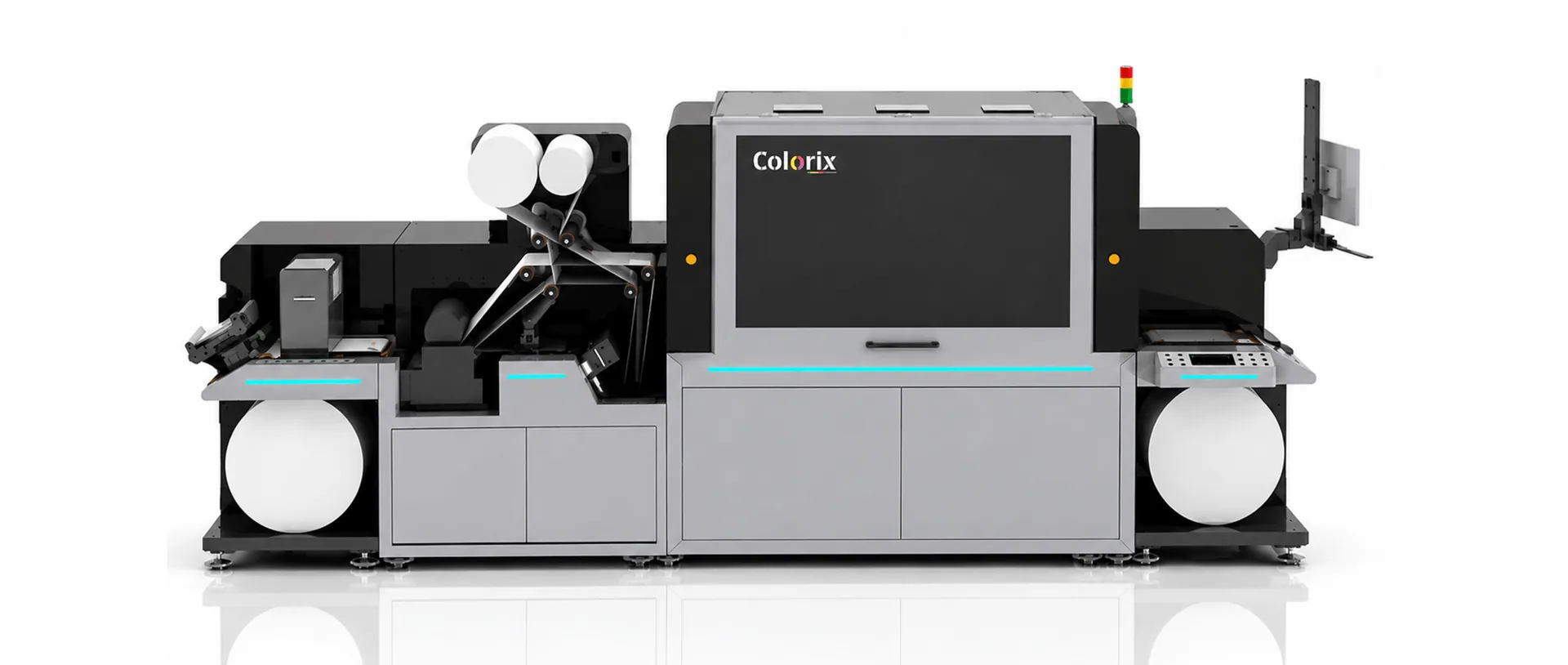

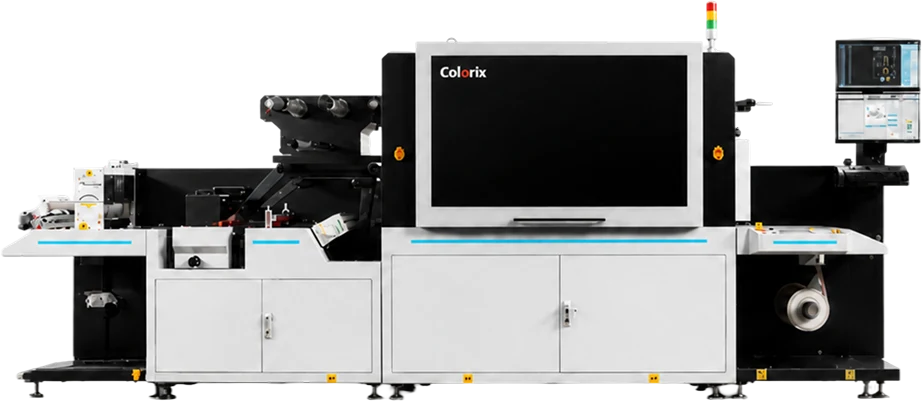

Hybrid Digital Label Press ~ All-in-One Digital + Flexo + Foil
Epson S3200 Industrial Inkjet
Print Heads
50 m/min
Max Printing Speed
1200 × 600 dpi
Max Resolution
4 to 7 Colors (White + C + M + Y + K + up to 2 Spot)
Color Configuration
350 mm
Max Printing Width
203.2 to 635 mm (64 to 200 T)
Printing Length
650 mm
Max Roll Diameter
200 kg
Max Roll Weight
UV Ink G7 Certified
Ink Type
Roll to Roll
Feeding
Approx. 4,600 × 1,700 × 2,100 mm
Machine Size
Approx. 2,500 kg
Machine Weight
Designed to support UV inkjet, spot colour, and extended gamut configurations, delivering consistent, brand-accurate label output across a wide range of substrates.
UV Ink G7 Certified
Standard configuration with White + CMYK for consistent, colour-accurate output across all supported label substrates
Spot Color (Optional)
Up to 2 sets of optional spot color channels for Pantone-matched brand colour reproduction on premium label applications
Extended 7-Color Configuration
Up to 7-color setup achieves 90 percent or higher colour gamut coverage for demanding brand colour accuracy requirements
Substrate Compatibility
PET · PVC · PP · PE · BOPP · Mono Film · Synthetic Paper · Coated Paper · Aluminium Foil · Special Materials
WWhite
CCyan
MMagenta
YYellow
KBlack
S1Spot 1
S2Spot 2
Engineered with smart automation and precision technology for reliable, efficient, and high-performance label production
All-in-One Hybrid Printing Architecture
Combines digital inkjet, flexo, and cold foil printing in a single integrated machine, eliminating the need for separate printing and finishing equipment and reducing production floor space and handling steps.
Plug-in Modular Design
Future-ready modular system allows operators to add or reconfigure printing and finishing modules as production requirements evolve, protecting the initial investment with scalable upgrade capability.
Epson S3200 Industrial Printhead
High-performance Epson S3200 printhead delivers sharp, precise label printing at up to 1200 x 600 dpi with consistent nozzle performance across long production runs on all supported substrates.
7-Color System for 90 Percent Colour Gamut
Up to 7-color ink configuration extends the printable colour gamut beyond standard CMYK, achieving 90 percent or higher colour accuracy for brands requiring precise colour matching on shelf-facing labels.
Pre-Flexo with Cold Foil Unit
Integrated pre-flexo station with cold foil application adds metallic and holographic foil effects inline without stopping production, enabling premium label finishes in a single continuous pass.
Automated Camera Inspection System
Inline automated inspection camera continuously monitors print quality during production, detecting defects, misregistration, and colour inconsistencies in real time before they reach the finished roll.
G7 Certified UV Ink System
G7 certified UV inks ensure consistent, standardised colour output across production runs and across machines, giving label printers the colour accuracy confidence required for brand-sensitive packaging clients.
Self-Developed MES System with Remote Service
Integrated manufacturing execution system combined with remote service and maintenance capability gives operators full production visibility while enabling fast, efficient technical support without on-site engineer visits.
Perfectly suited for a wide range of label and packaging applications, delivering exceptional print quality, colour accuracy, and production efficiency.
High-resolution variable data printing and G7 colour accuracy make the JetRix-E well suited to pharmaceutical, agrochemical, and crop protection label production requiring regulatory compliance and precise colour consistency.
Vibrant 7-color output, cold foil capability, and multi-substrate support suit premium food and beverage label production for brands competing on shelf visibility and packaging quality.
Cold foil, spot colour, and Pantone matching deliver the premium finish quality demanded by wine, spirits, and mineral water brands for high-end retail label applications.
High-quality digital printing with optional foil effects and spot colour channels suits cosmetics, personal care, and household chemical label producers requiring premium brand presentation.
Multi-substrate compatibility including PET, PVC, and PP films makes the JetRix-E a capable solution for shrink sleeve, laminated tube, and flexible packaging label applications.
Pure digital inkjet architecture enables seamless variable data printing for serialisation, batch coding, unique identifiers, and personalised label production without plate changes or downtime.
Durable UV ink on film substrates and aluminium foil produces robust, chemical-resistant labels for lubricants, automotive products, and industrial goods requiring long-lasting print quality.
No plate cylinder cost, fast job switching, and modular configuration make the JetRix-E the most cost-efficient choice for converters managing short runs, brand extensions, and frequent design changeovers.
Choose the ideal speed and resolution combination to optimize production output and print performance.
600 × 600 dpi
Roll-to-roll
Up to 50 m/min
900 × 600 dpi
Roll-to-roll
Up to 35 m/min
1200 × 600 dpi
Roll-to-roll
Up to 25 m/min
Built using premium international components that deliver superior accuracy, durability, and consistent production efficiency.
Industrial inkjet printhead delivering up to 1200 x 600 dpi print resolution at 50 m/min for consistent, high-quality label output across all supported substrates
Modular LED and UV curing design ensuring complete ink cure on all substrate types at full production speed
Integrated flexo and cold foil module for inline metallic and holographic foil application without separate finishing equipment
Inline real-time print quality monitoring detecting defects and colour inconsistencies before finished roll collection
Integrated manufacturing execution system for full production visibility, job management, and workflow automation
Remote diagnostic and technical support capability reducing engineer visit requirements and minimising production downtime
Standardised colour-accurate UV inks meeting G7 colour management certification for consistent, repeatable brand output
Advanced RIP software with Pantone matching, ICC colour management, variable data support, and complete label production workflow tools
Industrial-grade high-speed data transmission ensuring uninterrupted data flow to the printhead at all production speeds
